| 型 号 | Model | QS-S100
|
| 纸杯规格 | Paper cup specifications |

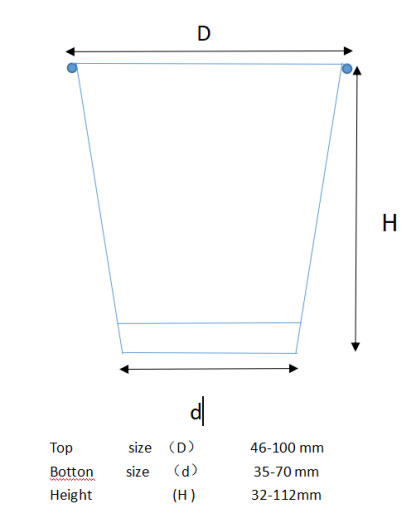

3-12 OZ T:46-100mm H:32-112mm B:35-70mm
|
| 供气要求 | Air supply requirement | 0.3-0.5MPa，0.4cbm/min |
纸张规格
| | 150-350 GSM single/double PE coated paper（单/双PE、铜版纸） |
生产速度
| Production speed
| 100-110只/分 |
| 电源 | Power supply | 220V/380V |
总功率
| Total power
| 4.8KW |
机器重量
| Machine weight | 2000kg |
外形尺寸
| Overall dimension(LxWxH)
| 2100*1160*1750mm |
Our newly designed paper cup forming machine is a fully automatic paper cup forming machine, which can produce paper cups of different sizes through a series of continuous processes, including more than two times of automatic paper feeding, paper anti backing device (to ensure accurate positioning), ultrasonic welding, transferring paper fans with magic hands, silicone oil lubrication, bottom punching, bottom folding, bottom preheating, bottom knurling, and cup out. This machine is developed by our company, and its stability has been improved through comprehensive technical improvement
