Model: QS-GS1200-2100

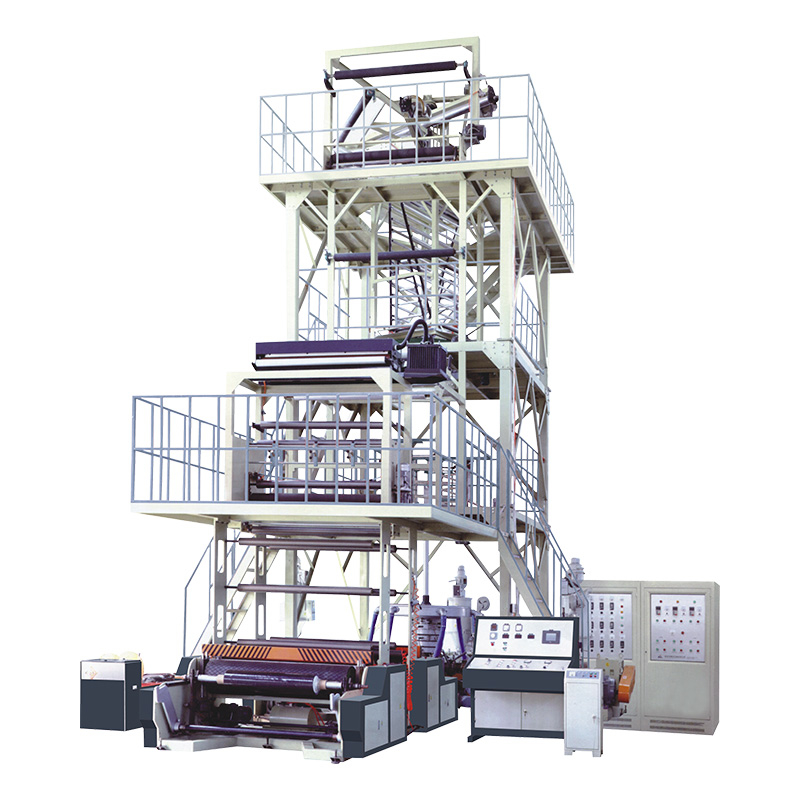

Product Name: Three To Five Layer Coextrusion Film Blowing Machine Set
Film Width: 800-2000mm
Three layer film is the abbreviation of Bidirectional stretch polyolefin shrink film. It's a new popular film widely used in many fields. This machine adopts advanced three - layer melting and co-extrusion technology in Two - way stretch type. Thus, finished products are of good transparency, shrinkage, toughness, sealing performance, Resistance to static electricity and stability.
Three To Five Layer Coextrusion Film Blowing Machine Set
Three layer film is widely used in the packaging of food, cosmetics, gifts, medicine, toys, Audio and video products, electronic products, wood products, daily necessities and plastic Plastic hardware.Considering new demands of market, our company spent several years in inviting a new type of three layer co-extrusion film blowing machine. This machine absorbs advantages of same products at home and abroad with a stable performance. Film with ranges from 800mm to 1500mm. Also, thickness can be adjusted according to customers' requirements. This machine is used for blowing LDPE/HDPE/LLDPE/ MLLDPE/PA packaging film. Due to its high capability in resistance, this film sells like a hot cake in market and is extensively applied in anti-Wet, anti-rain, anti- wind, anti-frost, anti-oil and etc.
1. Die head is layer type spiral mandrel, continuous 360 rotation.
2. Screen pack changer design is reliable, safe in operation and change the fitter screen easier.
3. Various functional parts may be installed to the lies.,such as length counting Device, vertical cutting device, cooling water row pipe, film spreading roller, Scrap collecting device.
Main Technical Parameters | |||
Model | QS-GS1200 | QS-GS1500 | QS-GS2100 |
Suitable material | HDPE/LDPE/LLDPE | ||
Film width | 800-1200mm | 1000-1500mm | 1200-2000mm |
Film thickness | 0.028-0.20mm | ||
Max.output | 120kg/hr | 150kg/hr | 200kg/hr |
Extruder | |||
Screw diameter | Φ50/Φ55/Φ50 | Φ55/Φ60/Φ55 | Φ60/Φ65/Φ60 |
Screw L/D | 30:1 | ||
Screw material | Sacm-645/38crmoala | ||
Cylinder material | Sacm-645/38crmoala | ||
Cylinder cooling | 370w*2/3 | 370w*2/3 | 550w*2/3 |
Main motor | 18.5/22/18.5kw | 22/30/22kw | 30/37/30kw |
Temperature control | 3*3 | ||
Average power-consume | 70kw/h | 85kw/h | 115kw/h |
Die size | Φ280mm | Φ400mm | Φ500mm |
Temperature control | 4zone | ||
Air ring | Doublelayer | ||
Air blower | 11kw | 15kw | 18.5kw |
Traction unit | |||
Roller width | 1300mm | 1700mm | 2200mm |
Traction speed | 5-50m/min | ||
Traction motor | 1.5kw | 2.2kw | 3kw |
Winding unit | |||
type | Surface frication type | ||
Winding motor | 1.5kw | 2.2kw | 2.2kw |
Winding speed | 5-50m/min | ||
Machine size | 9.5*4.5*7.5m | 10.5*5.0*9.0m | 11.5*5.5*10.0m |
Machine weight | 5T | 4T | 3T |
Note: Because of technical improvements, machinery apperance, technical parameters may be changed without notice.
Model: QS-GS1200-2100
Product Name: Three To Five Layer Coextrusion Film Blowing Machine Set
Film Width: 800-2000mm
Three layer film is the abbreviation of Bidirectional stretch polyolefin shrink film. It's a new popular film widely used in many fields. This machine adopts advanced three - layer melting and co-extrusion technology in Two - way stretch type. Thus, finished products are of good transparency, shrinkage, toughness, sealing performance, Resistance to static electricity and stability.
Three To Five Layer Coextrusion Film Blowing Machine Set
Three layer film is widely used in the packaging of food, cosmetics, gifts, medicine, toys, Audio and video products, electronic products, wood products, daily necessities and plastic Plastic hardware.Considering new demands of market, our company spent several years in inviting a new type of three layer co-extrusion film blowing machine. This machine absorbs advantages of same products at home and abroad with a stable performance. Film with ranges from 800mm to 1500mm. Also, thickness can be adjusted according to customers' requirements. This machine is used for blowing LDPE/HDPE/LLDPE/ MLLDPE/PA packaging film. Due to its high capability in resistance, this film sells like a hot cake in market and is extensively applied in anti-Wet, anti-rain, anti- wind, anti-frost, anti-oil and etc.
1. Die head is layer type spiral mandrel, continuous 360 rotation.
2. Screen pack changer design is reliable, safe in operation and change the fitter screen easier.
3. Various functional parts may be installed to the lies.,such as length counting Device, vertical cutting device, cooling water row pipe, film spreading roller, Scrap collecting device.
Main Technical Parameters | |||
Model | QS-GS1200 | QS-GS1500 | QS-GS2100 |
Suitable material | HDPE/LDPE/LLDPE | ||
Film width | 800-1200mm | 1000-1500mm | 1200-2000mm |
Film thickness | 0.028-0.20mm | ||
Max.output | 120kg/hr | 150kg/hr | 200kg/hr |
Extruder | |||
Screw diameter | Φ50/Φ55/Φ50 | Φ55/Φ60/Φ55 | Φ60/Φ65/Φ60 |
Screw L/D | 30:1 | ||
Screw material | Sacm-645/38crmoala | ||
Cylinder material | Sacm-645/38crmoala | ||
Cylinder cooling | 370w*2/3 | 370w*2/3 | 550w*2/3 |
Main motor | 18.5/22/18.5kw | 22/30/22kw | 30/37/30kw |
Temperature control | 3*3 | ||
Average power-consume | 70kw/h | 85kw/h | 115kw/h |
Die size | Φ280mm | Φ400mm | Φ500mm |
Temperature control | 4zone | ||
Air ring | Doublelayer | ||
Air blower | 11kw | 15kw | 18.5kw |
Traction unit | |||
Roller width | 1300mm | 1700mm | 2200mm |
Traction speed | 5-50m/min | ||
Traction motor | 1.5kw | 2.2kw | 3kw |
Winding unit | |||
type | Surface frication type | ||
Winding motor | 1.5kw | 2.2kw | 2.2kw |
Winding speed | 5-50m/min | ||
Machine size | 9.5*4.5*7.5m | 10.5*5.0*9.0m | 11.5*5.5*10.0m |
Machine weight | 5T | 4T | 3T |
Note: Because of technical improvements, machinery apperance, technical parameters may be changed without notice.
