Model : SHXJ-E1000/1200

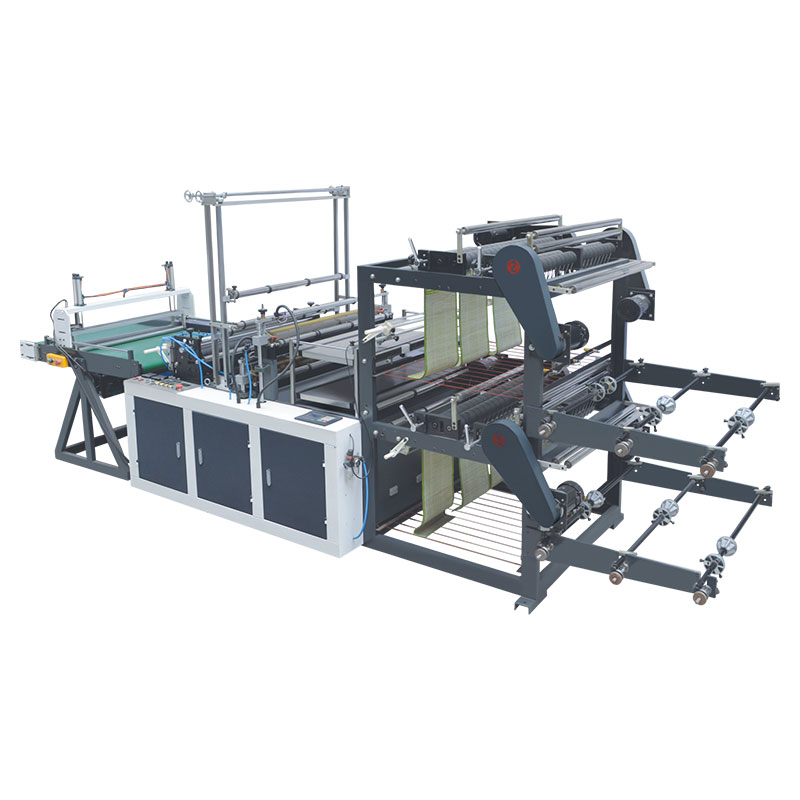

Product Name : Six Line Cold Cutting Bag Making Machine
1. Computer control.From the roll film to the finished product bag, it is completed in one time.
2. The servo motor is fixed long, and the bag speed is controlled.
3. Automatic feeding, torque motor automatically controls tension.
4. The computer will stop automatically when the feeding and bag is blocked.
5. Efficient operation, saving manpower and time.Heat sealing and cold cutting device is adopted.
Main Technical Parameters | |||||||||
Model | SHXJ-E1000 | SHXJ-E1200 | |||||||
Layer/line | 2layers/6lines | 2layers/6lines | |||||||
Cutting width | ≤950mm | ≤1150mm | |||||||
Cutting length | ≤1000mm | ≤1000mm | |||||||
Capacity | 100pcs/min*6 | 100pcs/min*6 | |||||||
Main motor | 2.2kw | 3kw | |||||||
Conveyor | Yes | yes | |||||||
Weight | 1200kg | 1500kg | |||||||
Machine size | 6.3m*1.9m*2.0m | 6.3m*2.2m*2.0m |
Note: Because of technical improvements, machinery apperance, technical parameters may be changed without notice.
