Model : DZB-L500
Product name: Single Line High Speed Rolling Bag Making Machine
1. Computer automatic control, automatic counting and setting alarm, high efficien saving manpower and time;
2. From film rolling to finished bags, it is fully automatic and one-time completion.

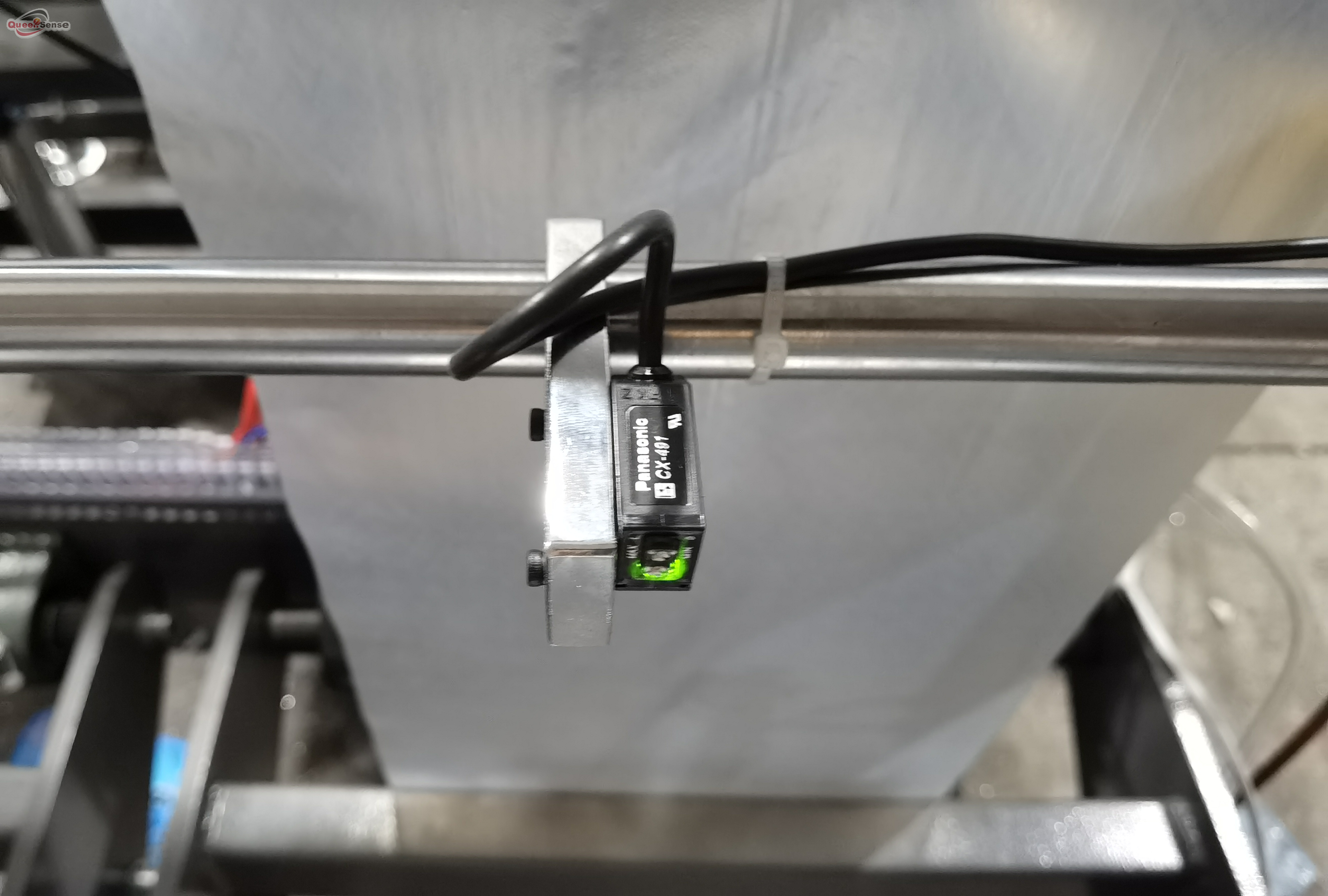

3. The length of domestic servo motor is fixed, photoelectric tracking is accurate at stable, and the feeding is controlled by photoelectric.
4. Using hot-cutting device and intelligent temperature control system, the bag mo sealed firmly and smoothly.
5. The main engine adopts frequency converter to control speed regulation.
6. Inverter control for feeding;
Main Technical Parameters | ||||||
Model | DZB-L500 | |||||
Cutting width | ≤400mm | |||||
Cutting length | ≤1000mm | |||||
Capacity | 200pcs/min | |||||
Main motor | 3kw | |||||
Heater | 1.5kw | |||||
Weight | 1000kg | |||||
Machine size | 6.0m*1.0m*1.5m |
Note: Because of technical improvements, machinery apperance, technical parameters may be changed without notice.
