Model : GFQ-600-1200

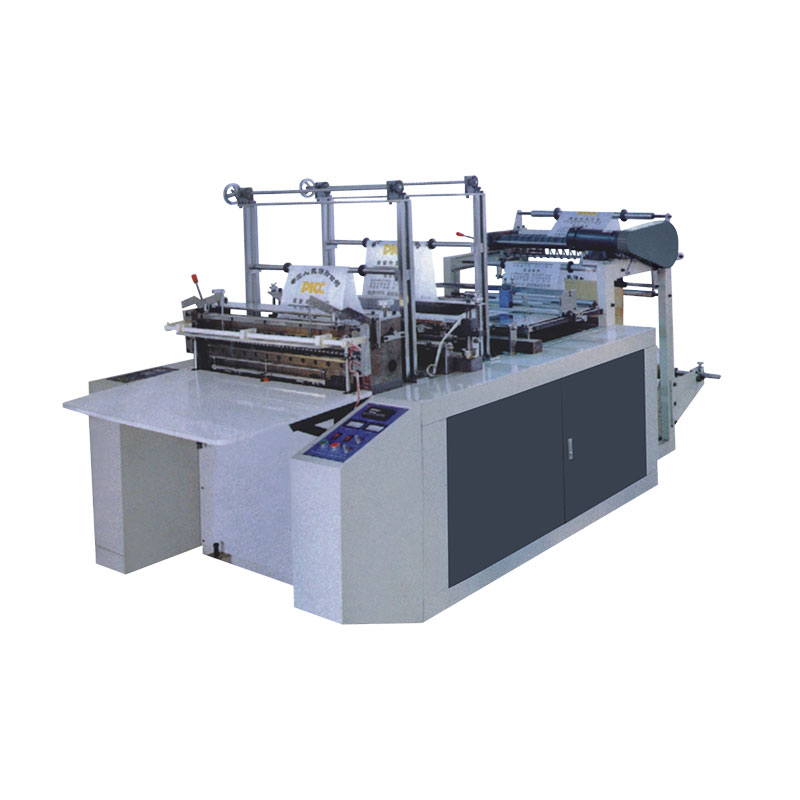

Product Name:Single Line Cold Cutting Bag Making Machine
1. The whole machine is controlled by microcomputer, and stepper motor is used to control the motor (optional servo motor control system).
2. Arbitrarily fixed length, step length photoelectric tracking, accurate and stable, automatic stop of the standard, and photoelectric control for feeding.
3. Automatic counting and setting counting alarm.
4. The automatic constant temperature is sealed firmly and smoothly with the
bag opening.
5. Double-hot double scalpel, two blank bags can be produced at one time (no printing)
Main Technical Parameters | |||||||||||||
Model | GFQ-600 | GFQ700 | GFQ-800 | GFQ-1000 | GFQ-1200 | ||||||||
Cutting width | 550mm | 650mm | 750mm | 950mm | 1150mm | ||||||||
Cutting length | ≤1000mm | ≤1000mm | ≤1000mm | ≤1200mm | ≤2000mm | ||||||||
Capacity | 130pcs/min | 130pcs/min | 130pcs/min | 100pcs/min | 100pcs/min | ||||||||
Main motor | 1.0kw | 1.1kw | 1.5kw | 2.2kw | 3kw | ||||||||
Weight | 700kg | 750kg | 800kg | 900kg | 1000kg | ||||||||
Machine size | 2.9m*1.3m*1.5m | 2.9m*1.4m*1.6m | 2.9m*1.5m*1.6m | 3.2m*1.8m*1.7m | 3.4m*1.9m*1.8m |
Note: Because of technical improvements, machinery apperance, technical parameters may be changed without notice.
Model : GFQ-600-1200
Product Name:Single Line Cold Cutting Bag Making Machine
1. The whole machine is controlled by microcomputer, and stepper motor is used to control the motor (optional servo motor control system).
2. Arbitrarily fixed length, step length photoelectric tracking, accurate and stable, automatic stop of the standard, and photoelectric control for feeding.
3. Automatic counting and setting counting alarm.
4. The automatic constant temperature is sealed firmly and smoothly with the
bag opening.
5. Double-hot double scalpel, two blank bags can be produced at one time (no printing)
Main Technical Parameters | |||||||||||||
Model | GFQ-600 | GFQ700 | GFQ-800 | GFQ-1000 | GFQ-1200 | ||||||||
Cutting width | 550mm | 650mm | 750mm | 950mm | 1150mm | ||||||||
Cutting length | ≤1000mm | ≤1000mm | ≤1000mm | ≤1200mm | ≤2000mm | ||||||||
Capacity | 130pcs/min | 130pcs/min | 130pcs/min | 100pcs/min | 100pcs/min | ||||||||
Main motor | 1.0kw | 1.1kw | 1.5kw | 2.2kw | 3kw | ||||||||
Weight | 700kg | 750kg | 800kg | 900kg | 1000kg | ||||||||
Machine size | 2.9m*1.3m*1.5m | 2.9m*1.4m*1.6m | 2.9m*1.5m*1.6m | 3.2m*1.8m*1.7m | 3.4m*1.9m*1.8m |
Note: Because of technical improvements, machinery apperance, technical parameters may be changed without notice.
