Model: QS-F55/60/70/75

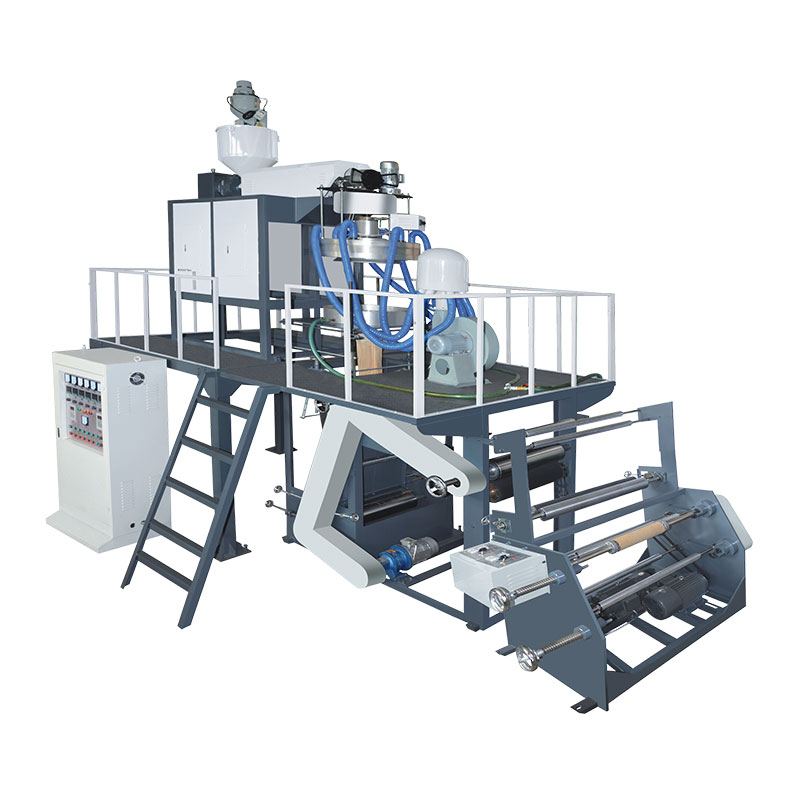

Product Name: PP Film Blowing Machine
Film Width: 100-1000mm
The screws & barrels are made in 38 chrome molybdenum aluminium with Nitriding treatment, making products a high performance in hardness and anti- corrosion. Due to technical requirements, extruder is lifted to 3m to make a easy blowing way. Method of blowing film: lower blowing film from the bottom of machine.
Rewinding unit is equipped with torque motors to maintain a stable tension, making film neat and smooth.
PP Film Blowing Machine:
This machine can be applies in blowing PP, LDPE film and etc. Finished products are widely used in the packaging of food, cloth, farbrics, daily necessities, Industrial products and etc.
Multi- Function Of This Machine:
1. Blowing LDPE plastic film, used for wrapping napkin, Sanitary pads & High-end clothing.
2. Wrapping explosive: It's suggested to use PP&LDPE material to extrude such packaging film.
3. Wrapping disposable injection: This plastic film requires a high transparency performance& thermal performance. By using PP/PE/PP material with co-extrusion method, clients can get such film with a strict proportion in formula.
4. Nylon compound wrapping film: such plastic film is performs good in anti-high temperature and is widely used in vacuum packing. By using pp co-extrusion machine and professional technology, customers can get good economic benefits.
Main Technical Parameters | |||||||||||
Model | QS-F55 | QS-F60 | QS-F70 | QS-F75 | |||||||
Suitable material | PP/LDPE | ||||||||||
Film width | 100-500mm | 100-600mm | 300-800mm | 400-1000mm | |||||||
Film thickness | 0.01-0.1mm | ||||||||||
Max.output | 40kg/h | 50kg/h | 60kg/h | 70kg/h | |||||||
Extruder | |||||||||||
Screw diameter | Φ55 | Φ60 | Φ70 | Φ75 | |||||||
Screw L/D | 30:1 | ||||||||||
Screw material | Sacm-645/38crmoala | ||||||||||
Cylinder material | Sacm-645/38crmoala | ||||||||||
Cylinder cooling | 250w*2 | 250w*2 | 250w*2 | 250w*2 | |||||||
Main motor | 15kw | 18.5kw | 22kw | 30kw | |||||||
Temperature control | 3ZONE | 4ZONE | |||||||||
Average power-consume | 20kw/h | 22kw/h | 30kw/h | 40kw/h | |||||||
Die size | Φ180mm | Φ200mm | Φ250mm | Φ350mm | |||||||
Temperature control | 1ZONE | 2ZONE | |||||||||
Air ring | 620mm | 620mm | 780mm | 780mm | |||||||
Air blower | 1.5kw | 2.2kw | 3kw | 3kw | |||||||
Traction unit | |||||||||||
Roller width | 600mm | 700mm | 900mm | 1100mm | |||||||
Traction speed | 5-60m/min | ||||||||||
Traction motor | 1.5kw | 1.5kw | 1.5kw | 1.5kw | |||||||
Winding unit | |||||||||||
Type | Centre rewinder | ||||||||||
Winding motor | 1.5kw | 1.5kw | 1.5kw | 1.5kw | |||||||
Winding speed | 5-60m/min | ||||||||||
Machine size | 4.5*2.0*3.8m | 4.8*2.5*4.3m | 5.0*2.8*4.5m | 5.5*3.0*4.8m | |||||||
Machine weight | 2.5T | 2.8T | 3.5T | 4.5T |
Note: Because of technical improvements, machinery apperance, technical parameters may be changed without notice.
