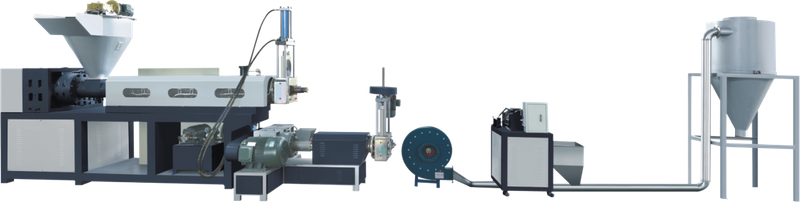

This raw materials like waste films of HDPE and LDPE are extruded through the extruder, and then are cooled through wind and cut hotly into granules, featuring in fine quality, bubble free and moisture free. The machine is equipped with a forced feeder, fast mesh changer and automatic rhermocontroller.
Features:
1.)The produce of Regeneratire without air hole and water.
2.)easy operation, low cost high ourput
3.)automatic constant temperature control.
4.)Automatic change filtrate wed stable performance.
5.)Long operating life and low noise, it is a more ideal wast plastics film regenerative pelletizer.
Usage:
This plastic recycling machine is suitable for regeneration and granulation of waste plastics, as HDPE, LDPE, and PP, etc. It is equipped with fast screen changer unit and automatic temperature control. The granulating crusher uses adjustable speed motor, piloting with an extruding machine at the same discharging speed synchronistical. The unit is easy to operate, With a high output, steady performance, and favorable economic benefit.
Characteristics: Main Technical VariablesMain Technical Variables:
| Model | SJ-E120 | SJ-E140 | SJ-E160 |
Suitable materials
| PP,HDPE,LDPE,PS,ABS
|
Max.output
| 150-200kg | 250-300kg | 300-350kg |
Screw diameter
| 120 | 140 | 160 |
| Screw L/D | 22:1 | 22:1 | 22:1 |
| Screw materials | 38 crmoala | 38 crmoala | 38 crmoala |
| Barrel materials | 38 crmoala | 38 crmoala | 38 crmoala |
| Main motor | 37kw
| 55kw | 75kw
|
| Temperature control area | 6
| 9 | 9 |
Machine size
| 3000kg
| 4500kg | 6000kg |
