Model: SHXJ-C700/900

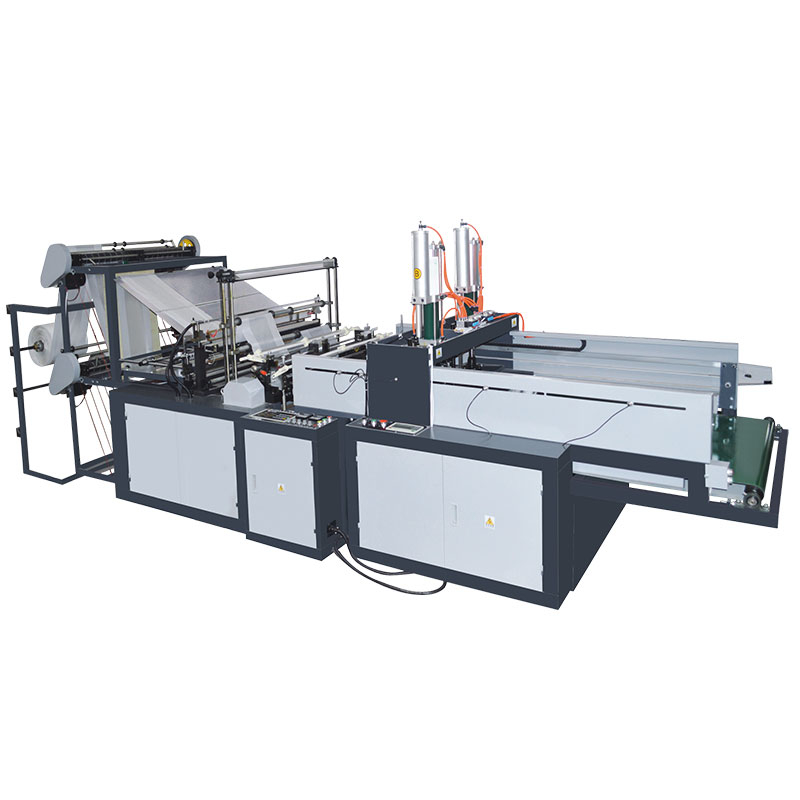

Product Name: Automatic Cold Cutting T-shirt Bag Making Machine
1. The whole machine is controlled by microcomputer, and stepper motor is used to control the motor (optional servo motor control system).
2. Arbitrary order length, step length photoelectric tracking, accurate and stable, automatic stop of the standard, and photoelectric control for feeding.
3. Automatic counting and setting counting alarm.
4. The automatic constant temperature makes the bag seal firm and smooth.
5. Fully automatic punching machine can complete the function of the punching vest at one time, saving the labor greatly.
Main Technical Parameters |
Model | SHXJ-C700 | SHXJ-C900 | SHXJ-C1300 |
Cutting width | 300mm*2 | 400mm*2 | 500mm*2 |
Cutting length | 1000mm | 1000mm | 1000mm |
Capacity | 130pcs/min*4 | 130pcs/min*4 | 130pcs/min*4 |
Main motor | 1.5kw | 2.2kw | 2.2kw |
Heater | 1.6kw | 2.5kw | 3kw |
Weight | 1100kg | 1300kg | 1700kg |
Machine size | 6.3m*1.6m*2.0m | 6.3m*1.8m*2.0m | 6.3m*2.3m*2.0m |
Note: Because of technical improvements, machinery apperance, technical parameters may be changed without notice.
Model: SHXJ-C700/900
Product Name: Automatic Cold Cutting T-shirt Bag Making Machine
1. The whole machine is controlled by microcomputer, and stepper motor is used to control the motor (optional servo motor control system).
2. Arbitrary order length, step length photoelectric tracking, accurate and stable, automatic stop of the standard, and photoelectric control for feeding.
3. Automatic counting and setting counting alarm.
4. The automatic constant temperature makes the bag seal firm and smooth.
5. Fully automatic punching machine can complete the function of the punching vest at one time, saving the labor greatly.
Main Technical Parameters |
Model | SHXJ-C700 | SHXJ-C900 | SHXJ-C1300 |
Cutting width | 300mm*2 | 400mm*2 | 500mm*2 |
Cutting length | 1000mm | 1000mm | 1000mm |
Capacity | 130pcs/min*4 | 130pcs/min*4 | 130pcs/min*4 |
Main motor | 1.5kw | 2.2kw | 2.2kw |
Heater | 1.6kw | 2.5kw | 3kw |
Weight | 1100kg | 1300kg | 1700kg |
Machine size | 6.3m*1.6m*2.0m | 6.3m*1.8m*2.0m | 6.3m*2.3m*2.0m |
Note: Because of technical improvements, machinery apperance, technical parameters may be changed without notice.
