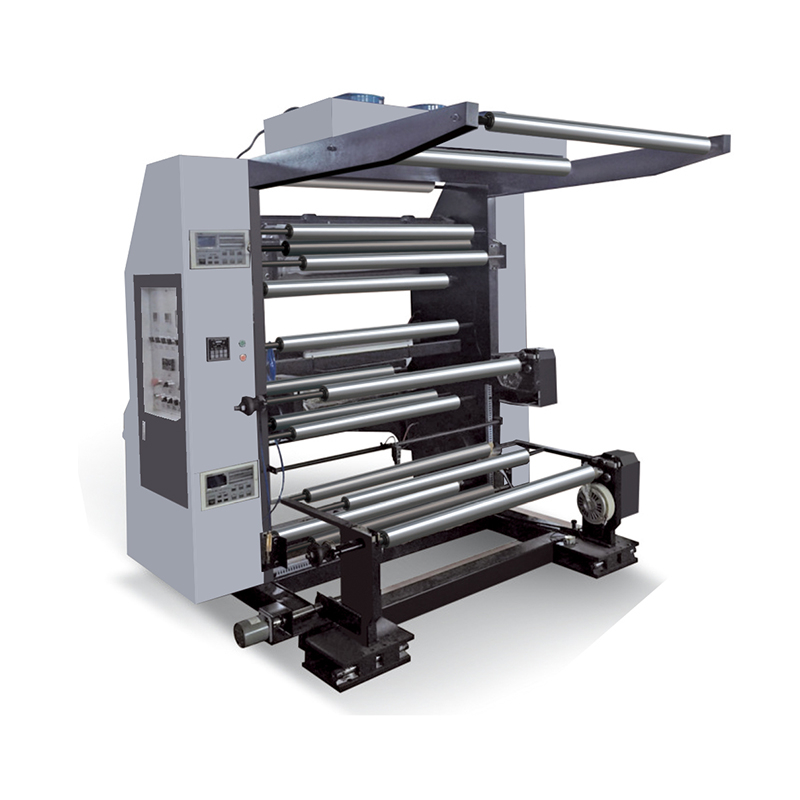

This machine is suitable for printing such packing materials as polyethylene, polyethylene plastic bag, glass paper ,and roll paper etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
flexographic four color printing machine, the printing speed can reach 50m/m. We can printing pe,pvc,bopp,opp,aluminum film,paper,non woven,tissue paper ETC.
| Model | Printing Width | Printing Length | Printing Speed | Plate Thickness
| Size of machine |
| YT-H2600 | 600mm | 180-1200mm | 50m/min | 2.38mm | 2.3*1.6*2.2m |
| YT-H2800 | 800mm | 180-1200mm | 50m/min | 2.38mm | 2.3*1.8*2.2m |
| YT-H21000 | 1000mm | 180-1200mm | 50m/min | 2.38mm | 2.3*2.0*2.2m |
| YT-H21200 | 1200mm | 180-1200mm | 50m/min | 2.38mm | 2.3*2.2*2.4m |
| YT-H4600 | 600mm | 180-1200mm | 50m/min | 2.38mm | 4.8*1.6*2.4m |
| YT-H4800 | 800mm | 180-1200mm | 50m/min | 2.38mm | 4.8*1.8*2.4m |
| YT-H41000 | 1000mm | 180-1200mm | 50m/min | 2.38mm | 4.8*2.0*2.4m |
| YT-H41200 | 1200mm | 180-1200mm | 50m/min | 2.38mm | 4.8*2.2*2.4m |
YT-H6600
| 600mm | 180-990mm | 50m/min | 2.38mm | 4.8*1.6*2.4m |
| YT-H6800 | 800mm | 180-990mm | 50m/min | 2.38mm | 4.8*1.8*2.4m |
| YT-H61000 | 1000mm | 180-990mm | 50m/min | 2.38mm | 4.8*2.0*2.4m |
| YT-H61200 | 1200mm | 180-990mm | 50m/min | 2.38mm | 4.8*2.2*2.4m |
Note: Because of technical improvements, machinery apperance, technical parameters may be changed without notice.
